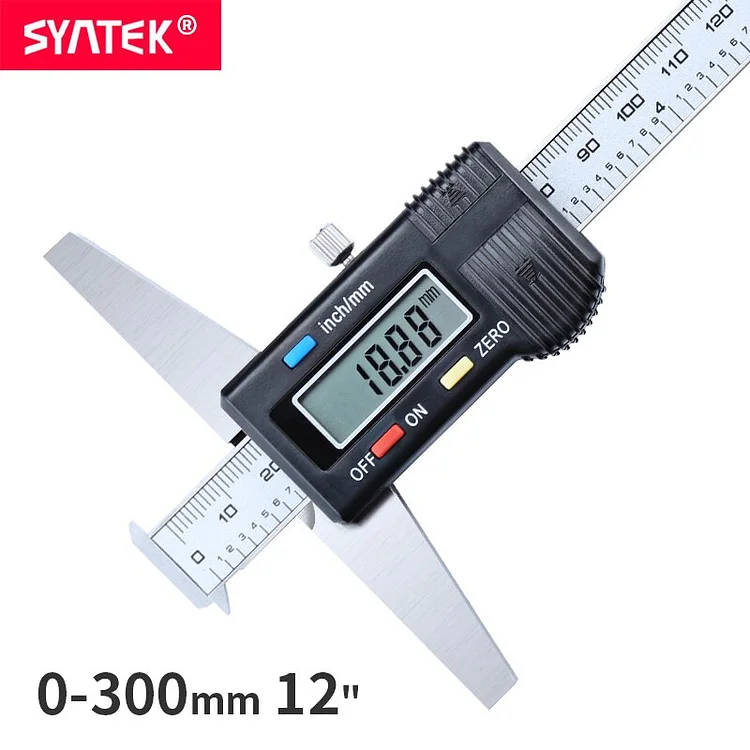

Syntek 0-300mm 12" Double Hooks Digital Depth Vernier Caliper Micrometer Stainless Steel Electronic Digital Depth Gauge
Price
$119.99
Save
$80.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Measurement Range: 0-300mm
Material: Stainless Steel
Accuracy:
Caliper Type: Vernier Calipers
Model Number: SDC02SG
|
HOT SALE |
|
Product introduction Syntek 0-300mm 12" Electronic Digital Depth Vernier Caliper (The double hooks model) Features & Function |
| Made of 4cr13 stainless steel,Strong and durable | |
| With large LCD display, easy to read | |
| Zero-setting at any position | |
| Minimum scale to read is 0.01 mm / 0.0005 " | |
| mm/inch measurement system conversion | |
| It will turn off automatically in 5 mins while idle | |
| Convenient and direct precision measurement for depth ,step ect in machining and civil use | |
|
| Measuring range | 0-300mm/0-12inch |
| Resolution | 0.01 mm / 0.0005 " |
| Accuracy | ±0.03mm |
| Battery type | 1.5V LR44/SR44 battery (Not included) |
| Maximum measuring speed | 3000mm/sec |
| Operating temperature | 0°C-40°C |
| Influence of humidity | Not important with 0 to 80% of relative humidity |
| Display | LCD screen |
| Product Size (L x W x H) | 380 x 100 x 14 mm |
| About Package |
| Package weight | 0.7kg |
| Package Contents |
1 x Digital depth caliper 1 x Plastic case |
Note: The parcel will be sent without battery ,The battery type is LR44/SR44.
Digital Depth Vernier Caliper (The double hooks model)
Product Details
Measuring instructions
It is made of hardened stainless steel material: a.Hardened stainless steel main scale ; b.ABS plastic casing.
With large LCD display, easy to read.
Battery type: 1.5V LR44/SR44 battery (Not included)
Down direction open the battery cover, easy to install battery
SAE / Metric scale and production number
Product back
Functions
1.Measuring faces
2.Reference surface
3.Slider clamp screw
4. Scale
5.Beam
6. mm/in change
7.Power on and off
8. Zero setting
9. LCD display
10. Battery compartment
Product Size(Unite:mm)
| Order no | Range | Resolution | Accuracy | L | a | b | c | d | e |
| SDC02SGF150 | 0-150mm/6" | 0.01mm/0.0005" | ±0.03mm | 230 | 100 | 5 | 2 | 14.5 | 3.5 |
| SDC02SGF200 | 0-200mm/8" | 0.01mm/0.0005" | ±0.03mm | 280 | 100 | 5 | 2 | 14.5 | 3.5 |
| SDC02SGF300 | 0-300mm/12" | 0.01mm/0.0005" | ±0.04mm | 380 | 100 | 5 | 2 | 14.5 | 3.5 |
| Note: manual measurement may have 1-2mm error |
Three kinds of range
You can choose the appropriate range according to your needs: 0-150mm/0-200mm/0-300mm
Package:Plastic case
More Real Picture
