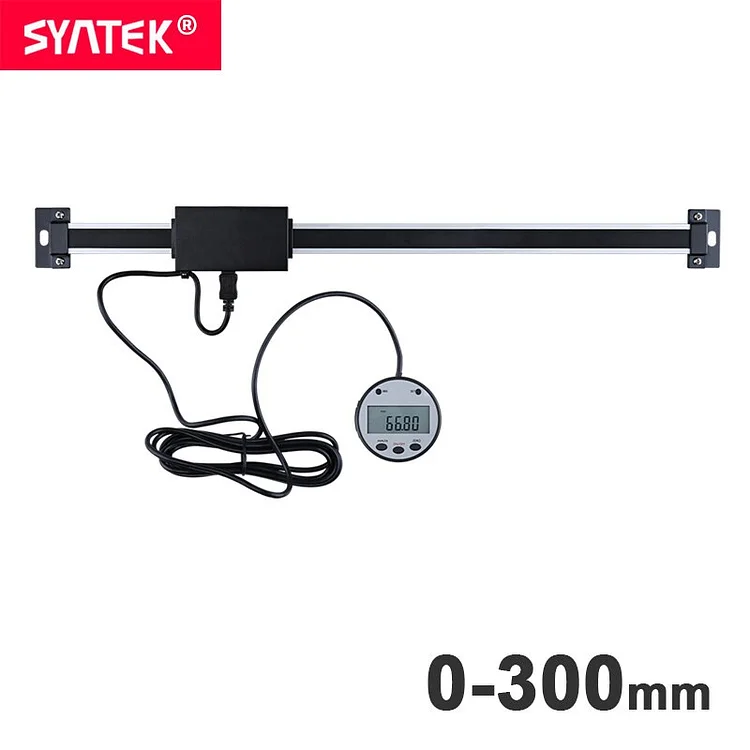

Syntek 0-300mm 12" DRO Magnetic Remote Digital Readout Digital Linear Scale For Bridgeport Mill Lathe Linear Vertical Horizontal
Price
$49.99
Save
$50.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Model Number: WD10002020
|
HOT SALE |
|
Product introduction Syntek 0-300mm 12" Digital Linear Scale Features & Function |
| Vertical & Horizontal Beam 2-in-1 for Router lift, Router table, Planer& Table Saw | |
| Quick measure speed at 120" per second | |
| Large crystal LCD display | |
| Remote readout display convenient for reading and operation | |
| Magnetic & Clamp hardware on remote readout | |
| Inch, fractional & metric reading | |
| Mounting hardware included | |
| It is used to be equipped together with various industry lathes and upgrade old lathe | |
|
| Measuring range | 0-300mm/0-12inch |
| Resolution | 0.01mm/0.0005inch |
| Accuracy | ±0.1mm |
| Battery type | 3V lithium CR2032 battery (Not included) |
| Maximum measuring speed | 3000mm/sec |
| Operating temperature | 0°C-40°C |
| Influence of humidity | Not important with 0 to 80% of relative humidity |
| Display | LCD screen |
| About Package |
| Package weight | 0.5kg |
| Package Contents |
1 x Digital Linear Scale 1 x Paper box |
Note: The parcel will be sent without battery ,The battery type is 3V CR2032 environmental Lithium battery
Digital Linear Scale
Product Details
It is used to be equipped together with various industry lathes and upgrade old lathe.
Vertical & Horizontal Beam 2-in-1 for Router lift, Router table, Planer& Table Saw.
Quick measure speed at 120" per second.
Display Functions
1.0N/OFF:Tum the display ON or OFF by press this button.
2.in/mm:Switch from inch to millimeter.
3.ZERO:Set display to zero.
4.ABS:Switch between relative ZERO and normal measuring.
5.Set:Under inch measuring system , press this button to set fractional reading between 1/32", 1/64",1/128".
Battery type: 3V lithium CR2032 battery (Not included).
Assembly
| 1.Use the magnetic back, to set the display unit at suitable location. | 2.Use the mount base, to set the display unit at suitable location. |
| 3.For router lift, mount the vertical bracket of the scale on the top of table. | 4.For horizontal measuring, mount the horizontal bracket on the table. |
| 5.Assembly the sensor bracket on the back of sensor. Using the sensor bracket and screws supplied. | 6.Mount the sensor on the movable carriage. |
Product Size(Unite:mm)
| Order no | Range | Resolution | Accuracy | a | L |
| WD10002018 | 0-150mm/6" | 0.01mm/0.0005" | ±0.03mm | 278 | 287 |
| WD10002019 | 0-200mm/8" | 0.01mm/0.0005" | ±0.03mm | 321 | 330 |
| WD10002020 | 0-300mm/12" | 0.01mm/0.0005" | ±0.04mm | 421 | 431 |
| Note: manual measurement may have 1-2mm error |
Three kinds of range
You can choose the appropriate range according to your needs: 0-150mm/0-200mm/0-300mm
Package:Paper box
