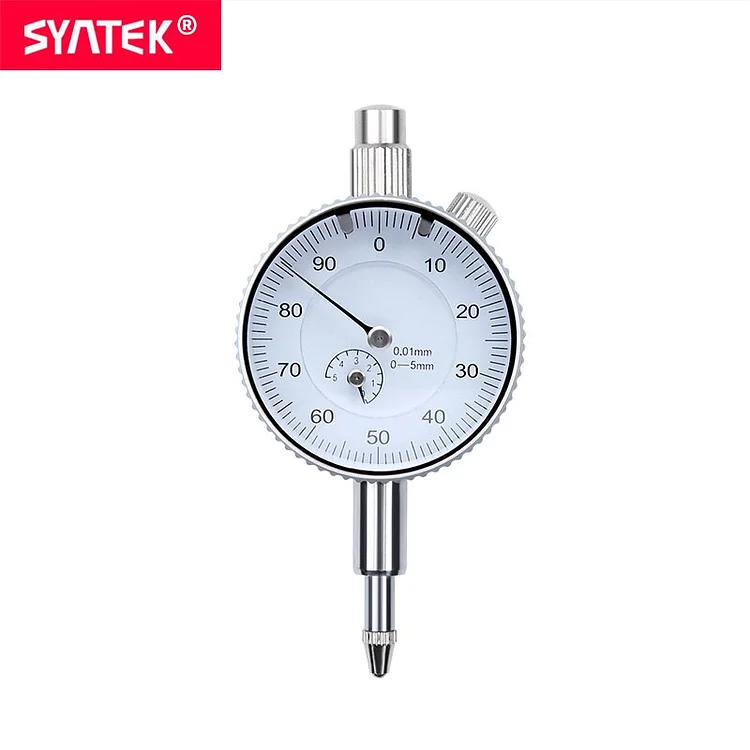

Syntek 0-5mm High Quality Dial Indicator Measuring Tool Metric Dial Test Indicator 0.01mm dial gauge
Price
$23.99
Save
$27.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Max Measuring Range: 0-5mm
Dial Indicator Style: Vertical
Display Type: Analog
Model Number: 111F05
Accuracy: 0.01mm
|
HOT SALE |
|
Product introduction Syntek 0-5mm High Quality Dial Indicator 0.01mm Features & Function |
| The moving parts are made of special wear mainly stainless steel, with good wear resistance and anti-corrosion properties | |
| Simple structure, high sensitivity, precision is reliable, easy to use and maintenance | |
| The dial is clear, convenient for reading | |
| Shockproof structure of rack | |
| Hard alloy probe | |
|
| Measuring range | 0-5mm |
| Resolution | 0.01mm |
| Accuracy | ±0.02mm |
| About Package |
| Package weight | 0.1 kg |
| Package Contents |
1 x Dial Indicator 1 x Instruction Manual 1 x Plastic case |
High Quality Dial Indicator 0.01mm Series
Measurement for form and position tolerance, such as runout, straightness, parallelism, flatness etc.
The 0.01mm Dial indicator,four specifications.
|
0-5mm |
| Measuring range | Resolution | Accuracy | A | B | C | D | E |
| 0-5mm | 0.01mm | ±0.02mm | 30mm | 14mm | 7.6mm | 41mm | 36.5mm |
0-10mm
|
| Measuring range | Resolution | Accuracy | A | B | C | D | E |
| 0-10mm | 0.01mm | ±0.02mm | 41mm | 18mm | 8.5mm | 56mm | 52mm |
0-30mm
|
| Measuring range | Resolution | Accuracy | A | B | C | D | E |
| 0-30mm | 0.01mm | ±0.03mm | 59mm | 18mm | 8.1mm | 60mm | 55mm |
0-50mm
|
| Measuring range | Resolution | Accuracy | A | B | C | D | E |
| 0-50mm | 0.01mm | ±0.04mm | 90mm | 30mm | 9.3mm | 80mm | 75mm |
Product Details
The dial is clear, convenient for reading
The moving parts are made of special wear mainly stainless steel, with good wear resistance and anti-corrosion properties.
Thread model of the measuring head: M2.5, it can be removed and replaced.
Tolerance instruction: you can set the tolerance range.
Functions
1. Dust cap
2.Lock key
3.In the dial
4.Dial
5.Measuring range
6.Mounting diameter
7. Spindle
8.Contact point
​
Package:Plastic case
More Real Picture
