Syntek Digital Bevel Box Angle Gauge Meter Electronic Digital Spirit Level Protractor Inclinometer Magnets in three surfaces
Price
$45.99
Save
$54.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
Model Number: WD10008007
is_customized: Yes
|
HOT SALE |
|

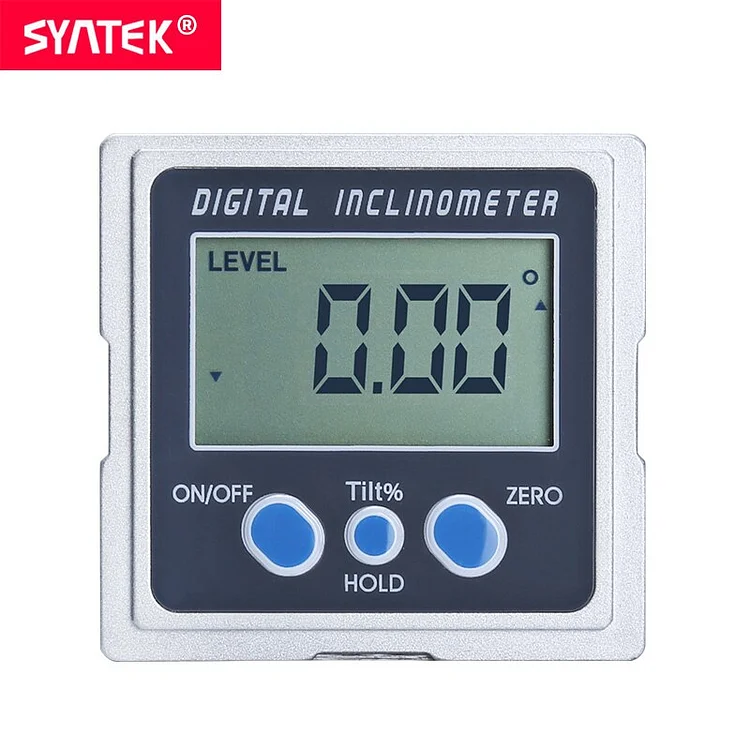

Product introduction Syntek Electronic Digital Inclinometer Aluminum alloy enclosure with magnet in three surfaces (Mini 3 button series) Features & Function |
| Aluminum alloy enclosure | |
| Measuring range 0-90°*4 | |
| Three function key | |
| With data hold function | |
| Zero-setting at any position | |
| Quick display of the measured value on big LCD screen | |
| With on-off power switch & Auto power-off for option | |
| Angle and slope readout conversion | |
| magnet in three surfaces | |
| Attach to the measured iron object conveniently | |
| Reversible reading allowing to read display to right side up display | |
| Relative-absolute measurement interchange at any position, ABS function | |
|
| Measuring range | 4*90° |
| Resolution | 0.05° |
| Accuracy | ±0.2° |
| Repeatability | 0.1° |
| Battery | 2 x 1.5V AAA(Not included) |
| Working temperature | 0°C-40°C |
| Dimension | 61*59*31mm |
| About Package |
| Package weight | 0.33kg |
| Package Contents |
1 x Bevel box 1 x Small screwdriver 1 x Manual 1 x Box |
Note: The parcel will be sent without battery ,The battery type is 2 x 1.5V AAA battery
Digital Inclinometer Aluminum alloy enclosure with magnet in three surfaces (Mini 3 button series)
For angle measurement in automotive, woodwork, building, drilling machinery, etc
More widely application is in wood processing industry ( especially infurniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.
Product Details
Quick display of the measured value on big LCD screen
If you tilt the digital spirit level in an angle > 90° the display automatically flips over by 180° for better readability.
Aluminum alloy enclosure
Magnet in three surfaces
The battery type is 2 x 1.5V LR03 AAA battery (Not included)
| Short press HOLD/Tilt% button, the display will hold the readout data. | Long press HOLD/Tilt% Button for 2 seconds, the display change to tilt%. |
|
|
Functions
1.display
2.ON/OFF Button
3.HOLD/Tilt% Button
4.ZERO Button
5.Measuring Surface
Product Size(Unite:mm)
The carton packaging
More Real Picture
|
Calibration Method
put the bottom surface of the instrument onto level surface which has been calibrated.
|
| 1.Press the "ON/OFF" button in the front with the other hand, the LCD displays "CAL1" | 2.and then press the " ZERO" button, the LCD displays"CAL2" |
| 3.Rotate 90 degree clockwise, hold the instrument and keep it still, press the "ZERO" button again,the LCD displays "CAL3" | 4.Rotate 90 degree clockwise, hold the instrument and keep it still,press the "ZERO" button again,the LCD displays "CAL4" |
| 5.Rotate 90 degree clockwise, hold the instrument and keep it still,press the "ZERO" button again, the LCD displays "CAL5" | 6.Now the calibration is finished. Please notice to keep the instrument still when pressing "ZERO" button. |
| 7.Now the calibration is finished. Please notice to keep the instrument still when pressing "ZERO" button |
