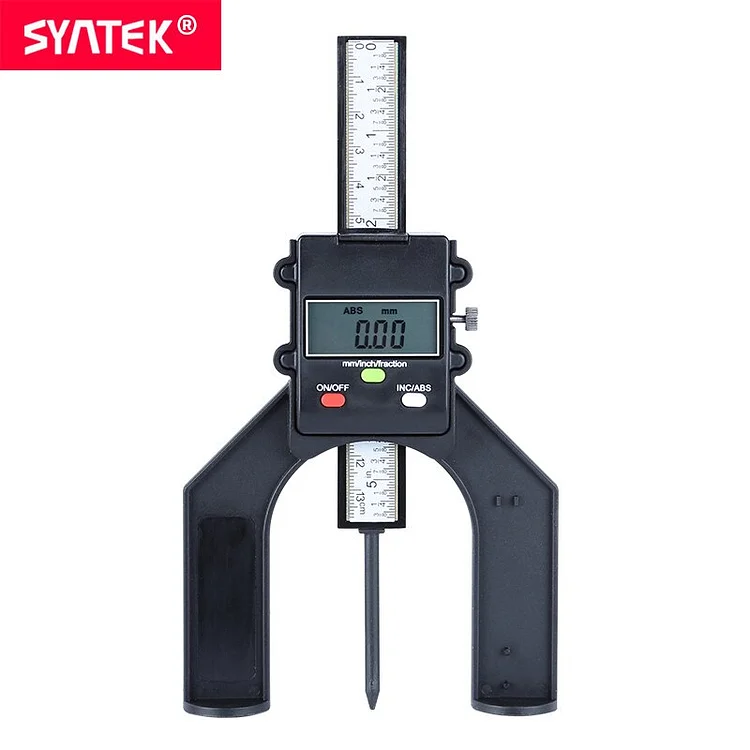

Syntek Digital Depth Gauge Digital Tread Depth Gauge LCD Magnetic Self Standing Aperture 0-80mm Hand Routers
Price
$28.56
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Measurement Range: 0-80mm
Material: Plastic
Accuracy:
Caliper Type: Vernier Calipers
Model Number: SLSDCF80
|
HOT SALE |
|
Product introduction Syntek Digital Depth Gauge 0-80mm Brief Description |
| This digital depth gauge is a useful tool for aperture depth measurement in woodworking, metalworking and other applications. |
| It can measure in metric (mm) and imperial (inch) units and the readings can be read readily on the LCD. |
| The zero reference point can be set at any point of the ruler to make relative measurement programm. |
| The designed was prepared by using the hard base feature is mainly for setting cutter depth on router tables and for backfence adjustment. |
| Firmly on metal ground for horizontal & vertical measurements more easily. |
| This depth gauge is an essential and useful tool for carpenters, craftsmen and DIY at home. |
| It can be used to set height of equipments such as router cutters, plands routers, saw tables, saw saws, saw benches and other engineering applications. |
|
Features & Function |
| Accurate & easy aperture depth measurement |
| Self-standing with magnetic base |
| 60mm wide aperture |
| Horizontal & vertical measurement |
| Switchable metric (mm) and imperial (inch) units |
| High accuracy ± 0.1mm (0.004 inch) and resolution 0.05mm (0.002 inch) |
| Auto power off |
| Removable pin included |
|
| Measuring range | 80mm / 3.125 inch |
| Resolution | 0.05mm / 0.002 inch |
| Accuracy | 0.10mm / 0.004 inch (<100mm) |
| Repeatability | 0.05mm / 0.002 inch |
| Max measuring speed | 1.5m / s, 60 inch / s |
| Power supply | 1 x 3V CR2032 Battery (The battery not including for air shipment) |
| Size | 144 x 110 x 23mm |
| Weight | 93g |
| Product Size (L x W x H) | 230 x 100 x 14 mm |
| About Package |
| Package Contents |
1 x digital depth gauge 1 x removable pin Standard factory package |
Brief Description
This digital depth gauge is a useful tool for aperture depth measurement in woodworking, metalworking and other applications.
It can be used to set height of equipments such as router cutters, plands routers, saw tables, saw saws, saw benches and other engineering applications.
Product Details
This depth gauge is an essential and useful tool for carpenters, craftsmen and DIY at home.
Made of strong plastic carbon fiber composites, lightweight and durable
Functions
1.Battery compartment
2.Scale
3.Large lcd
4.Locking screw
5.mm/in change
6.Power on and off
7.INC/ABS change
8. Gauge body
9. Depth pin
Product Size(Unite:mm)
Note: manual measurement may have 1-2mm error
Horizontal & vertical measurement
Battery type: 3V CR2032 battery (Not included)
With large LCD display, easy to read
Removable pin included
Self-standing with magnetic base,firmly on metal ground for horizontal & vertical measurements more easily.
BUTTON FUNCTION
| ON/OFF |
Short press ON/OFF to turn on. Gauge is in ABS mode-a short press of the ON/OFF button sets ZERO. Long press(over 3
seconds) turns the gauge off. The gauge shuts off automatically after 5 minutes without use.
|
|
mm/inch/
fraction
|
Short press in/mm/fraction converts between the three systems. In FRACTION mode, the gauge displays to the nearest
1/32",a flashing "in" on the display indicates the gauge is rounding the measurement off.
|
| INC/ABS |
A short press of the INC/ABS button converts between incremental and absolute modes. In absolute mode, you can perform
differential measuring between two points without losing the original ZERO position.
|
SEPARATING DIGITAL READOUT FROM THE GAUGE BODY
* To re-install, simply reverse the process, please be careful not to bend any of the parts.
|
Loosen the four mounting screws |
|
Pull the scale to the end |
|
Take out the digital readout |
Package:Blister card
