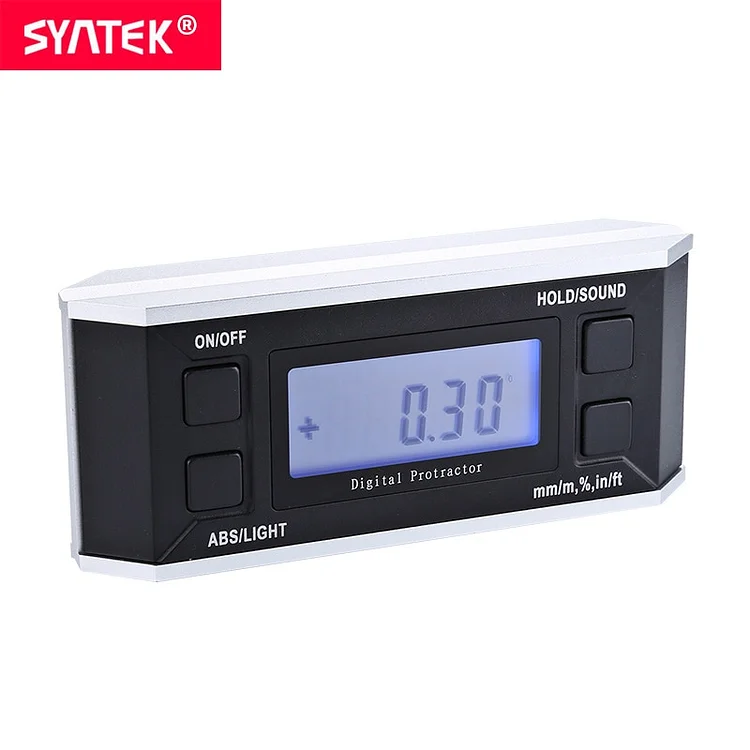

Syntek digital protractor inclinometer Level box with magnet illuminate digital angle finder Bevel Box cube gauge
Price
$49.99
Save
$50.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
Model Number: WD10008012
is_customized: Yes
|
HOT SALE |
|
Product introduction Syntek Electronic Digital protractor (4 button ) Features & Function |
| Degree and percentage of slope in conversion | |
| Zero-setting at any positio | |
| With protractor, inclinometer and level ruler 3-in-1 | |
| With on-off power switch & Auto power-off for option | |
| Quick display of the measured value on big LCD screen | |
| The readout always in upright position at any given angle | |
| Accurate aluminum structure, magnets on V-groove base plate | |
| Relative/absolute measurement interchange at any position | |
| With lock knob to lock the measuring angle in any position conveniently | |
| Used for angle measurement in automotive, building, drilling machinery etc | |
|
| Magnet | Yes |
| illuminate | Yes |
| Measuring range | 4*90° |
| Resolution | 0.05° |
| Accuracy | ±0.2° |
| Repeatability | 0.1° |
| Battery | AAA *2 Battery (Not included) |
| About Package |
| Package weight | 0.55kg |
| Package Contents |
1 x Protractor 1 x Manual 1 x Package box |
Note: The parcel will be sent without battery ,The battery type is 2 x 1.5V AAA battery
Digital protractor (4 button )
Used for angle measurement in automotive, building, drilling machinery etc
Product Details
Quick display of the measured value on big LCD screen ,with illuminate.
Aluminum alloy body, ABS plastic panel.
Accurate aluminum structure, magnets on V-groove base plate
The battery type is 2 x 1.5V LR03 AAA battery (Not included)
Functions
1.measuring surface
2.on/off button
3.hold/buzzer button
4.relative measurement key/illuminate key
5.measurement unit change key
6.measuring surface
|
Key operation instructions |
| 1.Press the "ON/OFF" key, it turns on, and the LCD displays absolute horizontal angle. Press"ON/OFF " key again, it turns off.The LCD automatically power-off when without any operation, so as to save the battery power. |
| 2.Short Press "ABS/LIGHT"key, it displays "REF", and goes in relative measurement mode; press the key again, "REF" disappears, it returns to absolute measurement mode. |
| 3.Press "HOLD/SOUND" key one time, it displays "H",and holds the present data; Press again, the data hold is released, and the "H"disappears; Long press this key, it displays buzzer icon, it buzzers at the angle "0±1°" , "45°±1°" ,"60°±1°", "90°±1°". If long press this key again,the buzzer function released, the icon disappears. |
| 4.When the measurement unit is in mm/m, %, m/ft,mm/m state, press the measurement unit change key every time, the measurement unit is changed to %, mm/m, in/ft,°successively. |
Product Size(Unite:mm)
The carton packaging
NOTE:When measuring the vertical axis must be greater than 30 °, otherwise LCD will display "error".
|
Calibration Method The item has been calibrated before factory delivery, it can be used directly after battery is installed,When the horizontal level declines, the user needs to calibrate it again (please refer to calibration method). Put the item on horizontal level( user face the display) under the power off state, first press and hold the "HOLD/SOUND" key.
|
| 1. Then press the "ON/OFF" key, it goes into calibration mode, the LCD displays "CAL1"; Hold the item still, | 2.press again"HOLD/SOUND",the LCD displays"CAL2". |
| 3.Rotate the item 90 degree in clockwise direction, and put the right measuring surface on the horizontal level, and keep the item still, then press"HOLD/SOUND",key again, the LCD displays "CAL3". | 4.Rotate the item 90 degree again in clockwise direction, and put the upper measuring surface on the horizontal level, and keep the item still,then press "HOLD/SOUND" key again, the LCD displays"CAL4". |
| 5.Rotate the item 90 degree again in clockwise direction, and put the left measuring surface on the horizontal level, and keep the item still, then press again " HOLD/SOUND" key, the LCD displays " CAL5". | 6.Rotate the item 90 degree again in clockwise direction, and put the bottom measuring surface on the horizontal level, and keep the item still, then press"HOLD/SOUND" key again, the LCD displays "PASS", then displays data "0.00",calibration is finished. |
