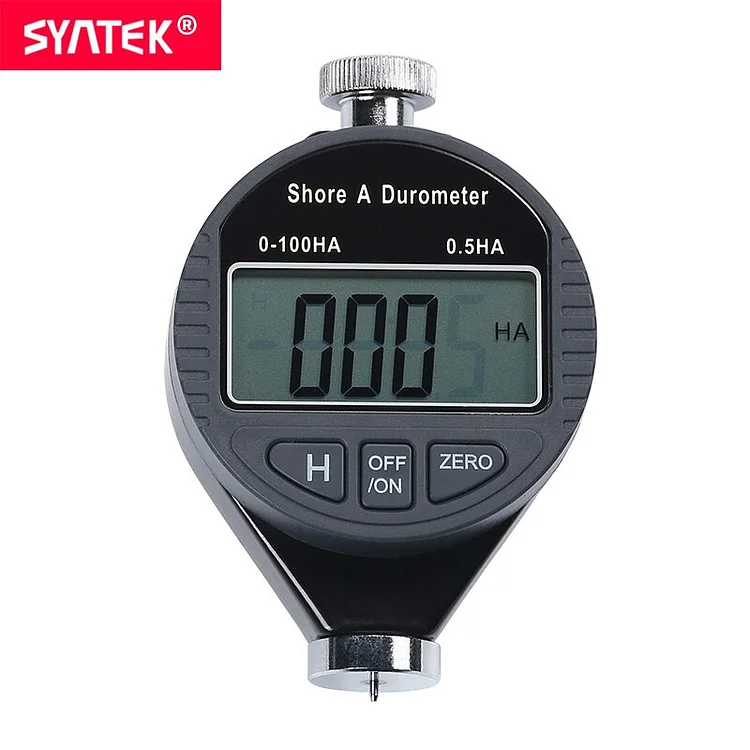

Syntek Digital Shore Durometer Sclerometer Rubber Hardness Tester Meter 0-100HA/HC/HD paragraph LX-A/C/D Type Digital durometer
Price
$48.99
Save
$40.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Woodworking
Model Number: CLSX0101
|
HOT SALE |
|
Product introduction Syntek Digital Shore Durometer Sclerometer Rubber Hardness Tester Major performances |
|
Major performances
Shore rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products. This apparatus has three models of Type A, Type C and Type D.
|
|
| Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials. | |
| Type C applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic. | |
| This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003. | |
| Charactor | |
| LXD-A digital hardness tester is widely applied in the low and medium hardness plastic ,all kinds of rubber , multidimensional fat ,leather,wax hardness texst ect. | |
| The product refers to ISO868 and the ISO7619 international standard production,conforms to GB/T531,JB6148 and the JJG304 standard. | |
|
| Graduation | 0-100 degree |
| Indentor running | 0-2.5mm |
| Indentor press on telos | A,C type 0.55N-8.06N,D type O-44.5N |
| Battery | 1.5V LR44 |
| Working temperature | 0-40ºC |
| Storage temperature | -20~70 |
| Relative Humidity | 0% - 80% |
| About Package |
| Package weight | 0.23 kg |
| Package Contents |
1 x Digital Shore Durometer 1 x Instruction Manual 1 x plastic box |
Note: The parcel will be sent without battery ,The battery type is 1.5V LR44/SR44 battery
Digital Shore Durometer Series
Shore rubber durometer is a type of vulcanized rubber and plastic product.
|
Three measuring heads can measure different materials
|
|
Indentor Shape: Type A
|
Indentor Shape: Type C |
Indentor Shape: Type D |
|
Measuring head : flat cone point (0.79mm) 35° Included Angle |
Measuring head : 2.5 mm Spherical |
Measuring head : Sharp cone point (SR0.1 mm) 30° Included Angle |
| Range:0-100HA | Range:0-100HC | Range:0-100HD |
| Resolution:0.5HA | Resolution:0.5HC | Resolution:0.5HD |
|
Indentor press on telos: 0.55N-8.06N |
Indentor press on telos: 0.55N-8.06N |
Indentor press on telos: O-44.5N |
|
Suitable for medium Hardness Plastic, Rubber,Leather,Polyester,Wax etc. |
It's suited for measuring Foam,Sponge, Shoes with incorporates material, etc. | Its suited for measuring Hard Rubber and Plastics such as Thermo Plastics,Flooring and Bowling balls,hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc. |
Product Details
Large LCD for easy reading
The battery type is 1.5V LR44/SR44 battery.
Product backside display
Functions
1. Measuring stick head
2.LCD display
3.HOLD switch
4. ON/OFF switch
5.Zero setting
How to use
1.Make zero before measure it.when durometer press on the glass,the hand should be on the position of 100 degree.
2.Put the sample on the stable plane,carry the durometer,the indentor keep 12mm away from the edge,press the sample reposefully,make the indentor press it vertically,then read it untill the durometer end and the sample contact completely.
3.Measure the hardness at least 5 times in different place away at least 6mm from the sight,averaging(micropore material sight at least keep 15mm).
Package:Plastic case
The measured show
Tpye A:Suitable for medium Hardness Plastic, Rubber,Leather,Polyester,Wax etc.
Type C:It's suited for measuring Foam,Sponge, Shoes with incorporates material, etc.
Type D:Its suited for measuring Hard Rubber and Plastics such as Thermo Plastics,Flooring and Bowling balls,hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc.
