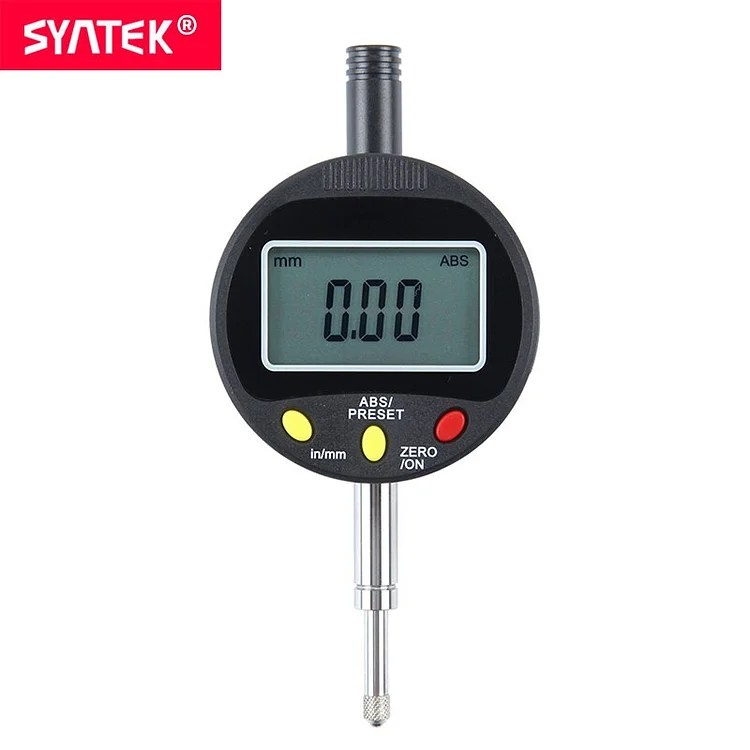

Syntek High quality Electronic Digital dial indicator 0.01mm Digital dial Gauge Metric/Inch Range 0-12.7mm/0.5inch
Price
$47.99
Save
$52.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Max Measuring Range: 0-12.7mm
Dial Indicator Style: Vertical
Display Type: Digital
Model Number: BF312A1
Accuracy: 0.01mm
|
HOT SALE |
|
Product introduction Syntek 0-12.7mm/0.5″ Electronic Digital Dial indicator 0.01mm(High quality) Features & Function |
| Measurement for form and position tolerance, such as runout, straightness, parallelism, flatness etc. | |
| Digital and analog display | |
| Compact & firm structure, convenient & stable operation. | |
| Quick display of the measured value on big LCD screen. | |
| mm/inch measurement system conversion | |
| Absolute and relative measuremnts | |
Preset real position value
|
| Measuring range | 0-12.7mm/0.5″ |
| Resolution | 0.01mm |
| Accuracy | ±0.02mm |
| The response speed | ≤0.6m/s |
| Battery | 3V CR2032 battery (Not included) |
| Working temperature | 0°C-40°C |
| storage temperature | -10°C-60°C |
| Working humidity | ≤85%RH |
| Measuring Force | 1.5N or less |
| About Package |
| Package weight | 0.25kg |
| Package Contents |
1 x Digital dial indicator 1 x Instruction Manual 1 x Plastic case |
High quality Digital indicator Series
Measurement for form and position tolerance, such as runout, straightness, parallelism, flatness etc.
Absolute and relative measuremnts
Preset real position value
1
|
The 0.01mm Digital indicator,three specifications.
|
| Measuring range:0-12.7mm | Measuring range:0-25.4mm | Measuring range:0-50.8mm |
| Resolution:0.01 mm | Resolution:0.01 mm | Resolution:0.01 mm |
| Accuracy: ±0.02mm | Accuracy: ±0.02mm | Accuracy: ±0.02mm |
| Measuring Force:≤1.5N | Measuring Force:≤2.0N | Measuring Force:≤2.5N |
|
The 0.001 mm Digital Gauge,three specifications.
|
| Measuring range:0-12.7mm | Measuring range:0-25.4mm | Measuring range:0-50.8mm |
| Resolution:0.001 mm | Resolution:0.001 mm | Resolution:0.001 mm |
| Accuracy: ±0.004mm | Accuracy: ±0.005mm | Accuracy: ±0.006mm |
| Measuring Force:≤1.5N | Measuring Force:≤2.0N | Measuring Force:≤2.5N |
Product Details
Speed measurement, return to zero stability.
Metal material body type mechanism.
Thread model of the measuring head: M2.5, it can be removed and replaced.
1.Data output interface:MINI USB
2.Battery compartment: 3V CR2032 battery (Not included)
Functions
1.battery
2.LCD display
3.data output
4.in/MM button and positive / negative direction button
5. ABS/PRESET button
6.ZERO/ON button
7.Mounting diameter
8. Spindle
9.Contact point
Button instructions
|
ZERO/ON BUTTON (CLEARING BUTTON) |
| 1. Short press "ZERO/ON" BUTTON can switch on the indictators |
| 2.long press "ZERO/ON" BUTTON will switch off. |
| 3. In nomal measurement to conduct relative measurement, short press " ZERO/ON" BUTTON will not clear but fix the values. |
| 4.Under absolute measurement (displaying the sign " ABS"), short press a ZERO/ON" BUTTON, the digital displayed will be preplacedz value (the numeral is preplaced value, see the -INSTRUTION" OF "ABS'BUTTON). |
|
ABS/PRESET (SET BUTTON) |
| 1.Underfundamental measurement, short press "ABS/PRESET" BUTTON can switch between relative measurement and absolute measurement, with the sign of "ABS" indicating absolute measurement. After switching the device display the relative zero point in relative measurement; in absolute measreuement indicating the current absolute value of the spindle. |
| 2.In "ABS" measurement under Metric unit system, long press "ABS/PRESET" BUTTON will enter preplaced value mode, and the last numeral twinkles which is a modifiable value. Short press "IN/MM" BUTTON will switch numerals between 0 and 9; short press "ZERO/ON" BUTTON will move the twinkling to the numeral on the left until the last numeral or positive/ minus sign. After setting, long press "ABS/PRESET" BUTTON to withdraw and preserve the preplaced value. After withdrawal from preplacement, the dictator will automatically enter absolute measurement, then the numerial value displayed in absolute zero point is the preplaced value.long press "ZERO/ON' BUTTON will withdraw without preservation of preplaced value. |
|
in/mm ( BUTTON) |
| 1. Short press In/mm button can switch between Metric Unit system and the Britain Unit system. | 2. Long press'* In/mm" button can switch between positive number and negative number. |
Product Size(Unite:mm)
Package:Plastic case
More Real Picture
