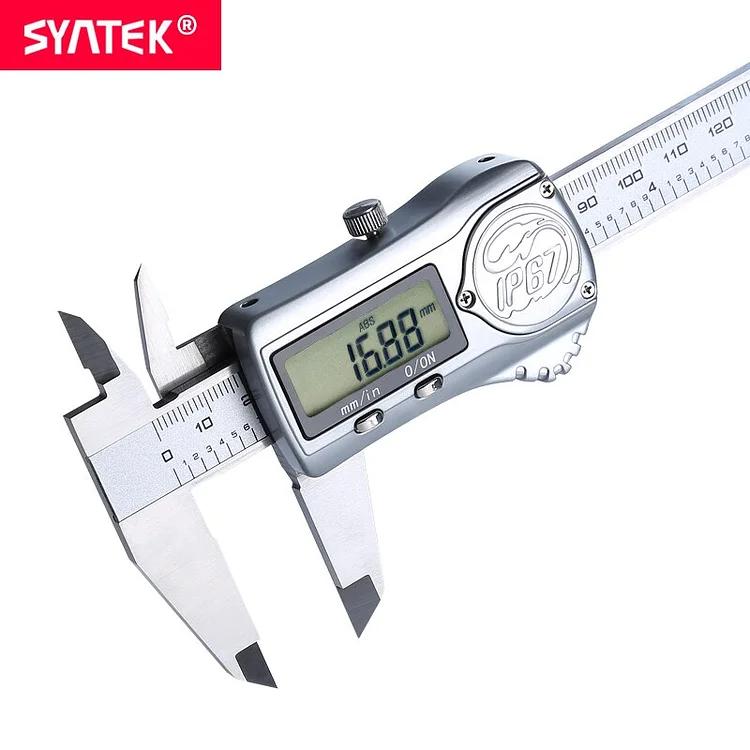

Syntek IP67 Waterproof Digital Accurate Stainless Steel Vernier Caliper With Absolute Encoding System 0-150mm 6 inch
Price
$62.99
Save
$68.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Measurement Range: 0-150mm
Material: Stainless Steel
Accuracy:
Caliper Type: Digital Calipers
Model Number: YDIP67F150
|
HOT SALE |
|
Syntek IP67 Waterproof Digital Accurate Stainless Steel Vernier Caliper With Absolute Encoding System 0-150mm 6 inch Features & Function Inductive measureing system with relative mode |
| Made of 4cr13 stainless steel,Strong and durable |
| With large LCD display, easy to read |
| Zero-setting at any position |
| Four way measurement: inside diameter, outside diameter, depth, step |
| Minimum scale to read is 0.01 mm / 0.0005 " |
| ABS / INC mode and metric / inch unit conversion |
| Auto power off. Power on when caliper moving |
|
For this new patented inductive system adopted absolute encoder for measuring displacement , the origin need not be reset during use or after replacement of the battery.
Waterproof, oilproof, anti-electromagnetic interference, protection rating IP67 (IEC 60529)
|
|
Technical Parameters |
| Measuring range | 0-150mm/0-6inch |
| Resolution | 0.01 mm / 0.0005 " Repeatability:0.01mm/0.0005 " |
| Accuracy | ±0.03mm |
| Battery type | 3V CR2032 battery (Not included) |
| Infinite setting speed | no speed error. |
| Operating temperature | 0 - 40 Deg.C |
| Storage Temperature | -10 - 60 Deg.C |
| Relative humidity | 100% |
| Product Size (L x W x H) | 236 x 77 x 14.5 mm |
| About Package |
| Package weight | 0.48 kg |
| Package Contents |
1 x LCD digital caliper 1 x Plastic case 1 x small screwdriver |
Note: The parcel will be sent without battery ,The battery type is CR2032
Product Details
Protection grade IP67
This product has the same reliability as vernier caliper and high protection level.
It can be used in workshop, exposed to coolant , water, dust or oil.
It can even be used in water for a short period of time.
Absolute encoding measuring system
Absolute encoding measuring system can avoid the loss of the measurement origin when the slider is fast moved or interfered.
It can also avoid the trouble of setting origin before measurement each time.
The origin won’t be lost even after replacement of the battery.
Stainless steel
It is made of hardened stainless steel material
a.Hardened stainless steel main scale and measuring jaw;b.Zinc alloy metal casing
High precision measurement
You will find it easier and more comfortable by using this caliper.
Functions
1. Step measuring faces
2.Internal measuring jaws
3.Slider clamp screw
4. Scale
5.Beam
6. Depth blade
7.External measuring jaws
8. mm/in change
9.Power on and off/Zero setting
10. LCD display
11. Battery compartment
Product Size
(Unite:mm)
| Order no | Range | Resolution | Accuracy | L | a | b | c | d |
| YDIP67F150 | 0-150mm/6" | 0.01mm/0.0005" | ±0.03mm | 236 | 40 | 21 | 16.5 | 16 |
| Note: manual measurement may have 1-2mm error |
mm/inch measurement system conversion
Press the button “mm/in” to switch to mm or inch mode alternately.
ABS/INC Conversion
In the ABS mode, when the lower jaws close, “0.00” is displayed, namely the absolute origin position of the digital caliper, and ABS is displayed on LCD screen. For relative measurements at any position, press the button “0/ON” and INC is displayed on the LCD screen and “0.00” is displayed in the meantime, namely in the INC mode (relative measurement mode). On the contrary, to convert to ABS mode, just press the button“0/ON” until ABS is displayed on the LCD screen and then release the button. The absolute position value is displayed.
Manual switch off
Press the button “0/ON”until OFF is displayed and then release the button. The power will be switched off.
Note:Keep pressing the button“0/ON”, “INC” →“ABS”→“OFF” → “INC” will be displayed on the LCD screen periodically. When the needed function menu appears, release the button,it will be in the needed mode.
Battery type: 3V CR2032 battery (Not included)
You can use a small screwdriver to open screws to install the battery.
3.5mm thickness main ruler
Made of 4cr13 stainless steel,Strong and durable
Four way measurement
a. inside diameter b. outside diameter c. depth d. step
The details show
Package:Plastic case
More Real Picture
