Syntek Metal casing 8-Inch 200mm Stainless Steel Electronic Digital Vernier Caliper Micrometer Measuring

color
200mm
Price
$35.70
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Vendor by: aliexpress
Description

Brand Name: syntek

DIY Supplies: Metalworking

Measurement Range: 0-200mm

Material: Stainless Steel

Accuracy:

Caliper Type: Digital Calipers

Model Number: JS20F200

HOT SALE

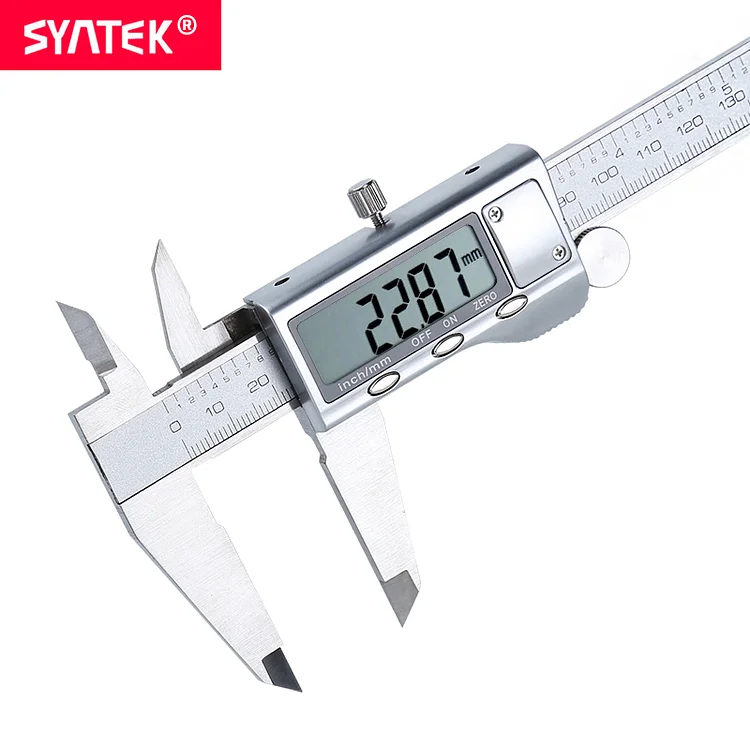

Syntek Metal casing 8-Inch 200mm Stainless Steel Electronic Digital Vernier Caliper(Large screen)

Features & Function
Made of 4cr13 stainless steel,Strong and durable
With large LCD display, easy to read
Zero-setting at any position
Four way measurement: inside diameter, outside diameter, depth, step
Minimum scale to read is 0.01 mm / 0.0005 "
mm/inch measurement system conversion
It will turn off automatically in 5 mins while idle
Metal casing Electronic Digital Caliper offers instant and accurate readings of inside, outside, step, and depth measurements with accuracy of 0.001 " ,Adjustable thumbscrew provides tension for optimal movement of the slide and locks the jaws of the caliper in place.

Technical Parameters
 Measuring range 0-200mm/0-8inch
 Resolution  0.01 mm / 0.0005 "
 Accuracy  ±0.04mm
 Battery type  1.5V LR44/SR44 battery  (Not included)
 Maximum measuring speed  3000mm/sec
 Operating temperature  0 - 40 Deg.C
 Influence of humidity  Not important with 0 to 80% of relative humidity
 Display  LCD screen
 Product Size (L x W x H)  286 x 90 x 13 mm
About Package
 Package weight  0.52 kg
 Package Contents

 1 x LCD digital caliper

 1 x Plastic case

 1 x small screwdriver



Note: The parcel will be sent without battery ,The battery type is LR44 / SR44 1.5V



Metal casing With Large LCD screen



Product Details



Stainless steel



It is made of hardened stainless steel material

A.Hardened stainless steel main scale and measuring jaw; B    .Zinc alloy metal casing





It's a very good measuring tool

can be used in schools,laboratories,carpentry,farms and DIY at home.





Functions



1. Step measuring faces

2.Internal measuring jaws
3.Slider clamp screw
4. Scale
5.Beam
6. Depth blade
7.External measuring jaws
8. mm/in change
9.Power on and off
10. Zero setting
11. LCD display
12. Battery compartment
13.Thumb roller
Product Size
(Unite:mm)



Order no Range Resolution Accuracy l a b c d
JS20-150 0-150mm/6" 0.01mm/0.0005"  ±0.04mm 236 40 21 16.5 16
JS20-200 0-200mm/8" 0.01mm/0.0005" ±0.04mm 286 50 24 19.5 16
 JS20-300 0-300mm/12" 0.01mm/0.0005" ±0.05mm 400  60 25 20.5 17
Note: manual measurement may have 1-2mm error






mm/inch measurement system conversion

SAE / Metric conversion switch automatically converts measurements to inches or millimeters with the simple press of a button

Battery type: 1.5V LR44/SR44 battery  (Not included)

You can use a small screwdriver to open two screws to install the battery.

Clear scale

SAE / Metric Scale



Four way measurement

a.inside diameter          b.outside diameter          c.depth          d.step


 Three kinds of range
You can choose the appropriate range according to your needs:  0-150mm/0-200mm/0-300mm
Package:Plastic case


More Real Picture
