Syntek new product mini-usb type date cable line for 0.01/0.001 mm digital indicator automatic data collection
Price
$48.99
Save
$51.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
DIY Supplies: Metalworking
Model Number: USBF221
Output Type: USB
|
HOT SALE |
|
Note: This mini-usb data cable is useful for our Syntek 0.01/0.001 mm high quality digital indicator.
Main Features:
|
| 1. This product is a device that can automatically collect data. |
| 2. Need to install USB drivers and dedicated data acquisition software. |
| 3. Data preservation can be saved manually and automatically. |
| 4. System parameters can be set in the state of device connection and disconnection. |

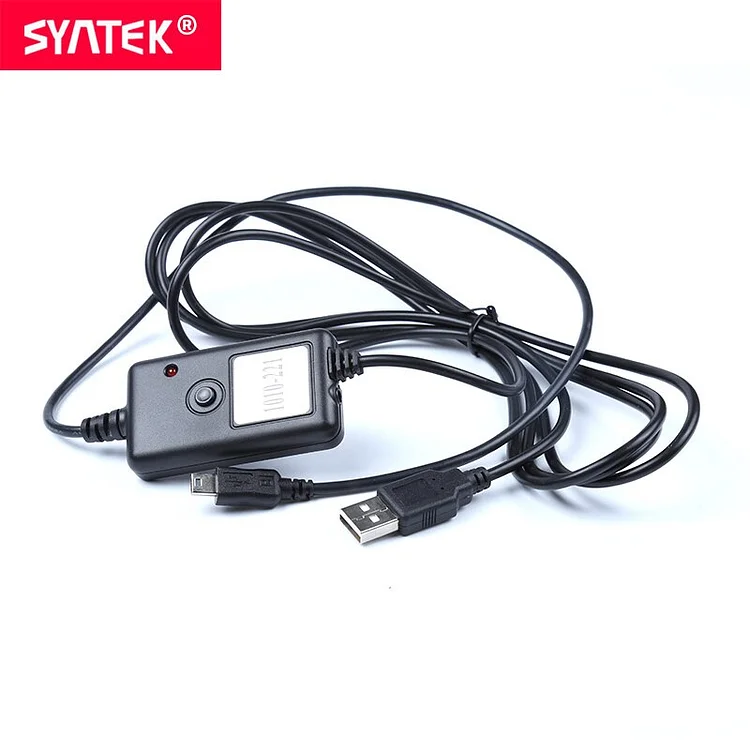

mini-usb type date cable line
It connects the indicator and the computer, and automatically imports the data you measure into the computer.
Install the demo
1. Connect the data cable mini USB interface to the indicator table.
2. Connect the USB interface to the computer.
3. Click the "CH341SER" and "Data collection system setup" files on the attached CD and install them separately.
|
How to use
The connection
|
After the software is opened, click the "connect" button, and the software automatically searches for the device.
The current value window will display the data, and the connection is successful.
System setting
The device can connect and disconnect the conditions set the system parameters, click on the "system setting" button, the parameters setting window data into green (see below), said you can modify, after the completion of the data changes, click on this button again, save parameters, bounce back window.
instructions
1.STD: standard size,represents the nominal size of the part.
2.USL: upper tolerance,allowable deviation from standard size.
3.LSL: lower tolerance,allowable deviation from standard size.
4.Auto sample interval:The data automatically collects and saves the interval time.
5.Unit: measurement unit,the unit of data collection is defined by the user, which can be millimeters, inches and degrees.
6.Beep:Select whether or not you need a prompt when data is saved.
7. Workpiece:The artifact name user can name itself.
8.Operator:Operator name users can name themselves.
Data preservation
Data can be save manually and automatically saved, click on the "Manual" button, the data can be stored a record, click on the "Auto" button, can according to the parameters set in the automatic acquisition time to automatically record the data, records in the process of clicking this button can stop the collection.
Click the "clear" button to clear the current record.
Click the "save" button to save the data into an EXCEL file for further processing.
Software operation interface description
A: data record area.
B: current data values.
C: statistical data.
D: the area of parameter setting.
E: operation button of data record.
F: connection button
Package:Paper box
