Syntek outside micrometer 0-25 mm 0.01 mm micrometre measuring micrometer Gauge

specification
0-25mm
Price
$60.99
$25.99
Save  $35.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Vendor by: aliexpress
Description

Brand Name: syntek

DIY Supplies: Metalworking

Model Number: Q0ZF0025

Accuracy: 0.001mm

Display Type: Analog

Micrometer Type: Outside Micrometers

HOT SALE

0-25 mm outside micrometer 0.01 mm (Mechanical scale)

0-25mm Digital outside Electronic micrometer 0.001 mm (2-Buttons Digital display)

0-25mm 0-1inch Digital outside Electronic micrometer 0.001 mm ( 7-Buttons Multifunction )

0.001mm Standard Electronic Digital Outside Micrometer 0-25mm(4-Buttons Standard )

IP65 Waterproof Electronic Digital Outside Micrometer 0-25mm(4-Buttons IP65)

Micrometer Gauge Durable Measuring Tools

0-10/25mm Electronic Digital Thickness Gauge(Flat head)

Stainless Steel Electronic Digital Vernier Caliper
modname=ckeditor
Product introduction

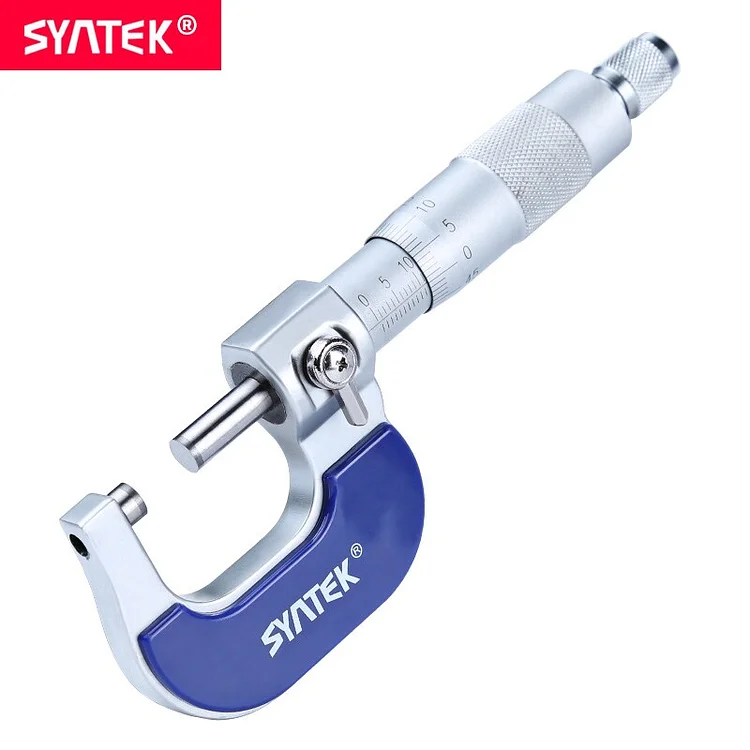

Syntek 0-25 mm outside micrometer  0.01 mm (Mechanical scale)
Features & Function
Feature:
Smooth  paint frame
Carbide-tipped measuring faces
Smooth surface with chrome clear scale
With locking clamp
Friction sleeve locking device to ensure of repeatability

Technical Parameters
 Measuring range  0-25mm
 Resolution  0.01 mm
 Accuracy  ±0.004mm
 Product Size (L x W x H)  130 x 52 x 20.5 mm
About Package
 Package weight  0.33 kg
 Package Contents

 1 x 0-25mm outside micrometer

 1 x Plastic case




Product Details
High quality diameter
A:Chromium plated body, high quality and durable.
B:Mechanical laser scale easy to use.

Clear scale
Laser scale, clear wear resistance.

Measuring surface with a hard alloy head

Functions
1. Anvil
2.Spindle
3.Locking device
4.Sleeve
5.Thimble
6.Ratchet stop
7. Frame

Product Size(Unite:mm)

Order no Range Resolution Accuracy L a b c d w
Q0ZF0025 0-25mm 0.001mm ±0.004mm 130 31.5 18 70 18.5 52
Note:  manual measurement may have 1-2mm error





Measurement precision

Measuring range:0-25mm
Resolution:0.01 mm
Accuracy:±0.004mm


Zero setting method for mechanical scale


Step1.Clean the measuring surface.

Step2.Closed measuring surface.

Step3.Lock the device to the left, lock the spindle.

Step4.Adjust the sleeve with a wrench until the zero position is aligned.





Package:Plastic case

More Real Picture
