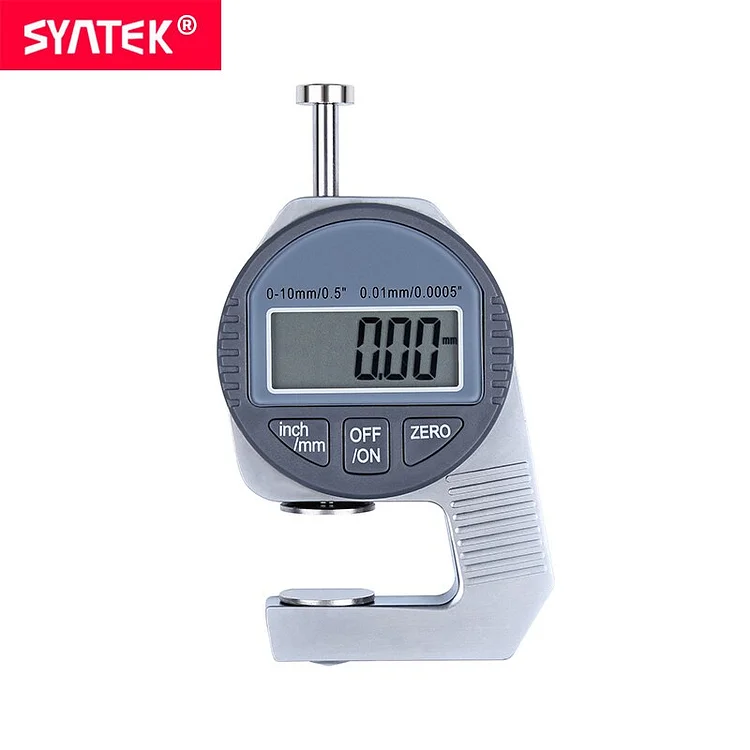

Syntek Portable Electronic Dial Indicator Thickness Mini 0.01mm Digital Thickness Gauge Meter 0-10mm Measure Tool Tester
Price
$25.99
Save
$41.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
With Backlight Or Not: NO
Model Number: MINI Indicator Thickness
|
HOT SALE |
|
Product introduction Syntek Portable Electronic Digital Dial Indicator Thickness(Mini) Features & Function |
| Large LCD for easy reading | |
| Lightweight and portable | |
| Novel design, Large display window | |
| For measuring the thickness of paper ,leather, jewelry and metal sheet etc. | |
| Functions / manual ON/OFF or auto power off, zero setting at any position ,Metric /Inch system conversion at any position | |
|
| Measuring range | 0-10mm |
| Resolution | 0.01mm/0.0005 |
| Accuracy | ±0.02mm |
| Battery | 1.5V LR44 |
| Working temperature | 0-40ºC |
| Storage temperature | -20~70ºC |
| Relative Humidity | 0% - 80% |
| About Package |
| Package weight | 0.25 kg |
| Package Contents |
1 x thickness gauge 1 x Instruction Manual 1 x Plastic box |
Mini Digital Dial Indicator Thickness Series
Lightweight and portable
Three measuring heads can measure different materials
| measuring head type:Big | measuring head type:Small | measuring head type:Point |
| Head size:14.5mm | Head size:6mm | Head size:1.8mm |
| Suitable for material type:Elastic material | Suitable for material type:Soft materials | Suitable for material type:Hard material |
|
|
|
Product Details
Large LCD for easy reading
The battery type is 1.5V LR44/SR44 battery.
Functions
1. Measuring stick head
2.LCD display
3.MM/IN switch
4. ON/OFF switch
5.Zero setting
6. Bracket
7.Up measuring surface
8. Down measuring surface
How to use
| 1.Push down the MEASURING STICK to let the DOWN MEASURING SURFACE close to the UP MEASURING SURFACE. | 2. Press the ZERO to let the display show 0.00mm or 0.000in,the release the MEASURING STICK. | 3.Take the workpiece between the UP and DOWN MEASURING SURFACE,then push down the UP MEASURING SURFACE to contact the workpiece,last,read the display data. |
|
|
|
Package:Plastic case
The measured show
Big measuring head type:Suitable for measuring elastic material, such as sponge, foam, pearl cotton, etc.
Small measuring head type:Suitable for measuring soft materials such as paper, leather, cloth, film and so on.
Point measuring head type:Suitable for measuring hard materials such as steel plate, aluminum plate, wood, lens and so on.
More Real Picture
