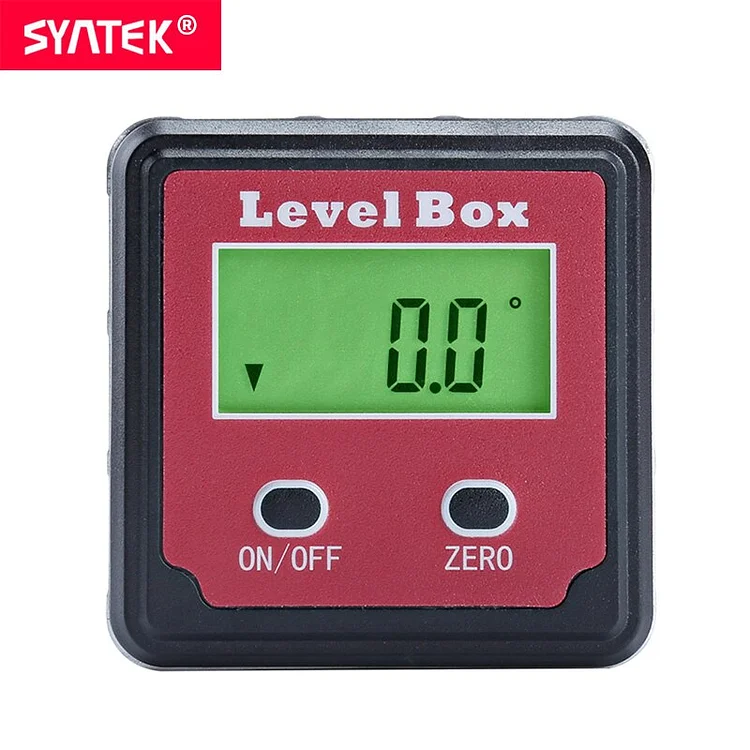

Syntek Red Precision digital protractor inclinometer Level box digital angle finder Bevel Box with magnet base Automatic LCD bac
Price
$26.99
Save
$40.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Product was out of stock.
Vendor by: aliexpress
Description
Brand Name: syntek
Model Number: QJYF201JR
is_customized: Yes
|
HOT SALE |
|
Product introduction Syntek Electronic Digital Level box (Mini 2 button ) Features & Function |
| Automatic LCD backlight | |
| Measures in absolute and relative measurements | |
| Angle display in degrees | |
| Working range of angle measurement 4 x 90° | |
| Automatic digit inversion for overhead measurements | |
| Magnetic base | |
|
| Resolution | 0.1° |
| Accuracy | ±0.1°for 0°and 90°,the rest ±0.2° |
| Working Range | 4 x 90° |
| Power Supply | 1x AAA" alkaline battery (Not included) |
| Working temperature | 32°F to 122°F(0°C to 50°C) |
| Dimensions | 60mm x 60mm x 25mm |
| Weight | 0.082 Kg |
| About Package |
| Package weight | 0.25kg |
| Package Contents |
1 x Bevel box 1 x Manual 1 x Package bag 1 x Package box |
Note: The parcel will be sent without battery ,The battery type is 1 x 1.5V AAA battery
Digital Level box (Mini 2 button )
For angle measurement in automotive, woodwork, building, drilling machinery, etc
More widely application is in wood processing industry ( especially infurniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.
Product Details
Automatic LCD backlight.
Aluminum alloy body, ABS plastic panel.
Magnet in bottom (Hide)
The battery type is 1 x 1.5V LR03 AAA battery (Not included)
|
Measures in absolute and relative measurements
|
| 1. With the unit on, push the zero button to set the display to zero and to enter the relative measurement mode. |
| 2. In relative measurement mode, the ABS symbol on the LCD will disappear. |
| 3. Relative measurement mode allows the operator to measure the difference between two objects. The absolute mode measures the angle between a flat surface and the first object. (See Diagram Below) |
| 4. To return to (ABS) absolute measurement mode, press the on/off button one time. |
Functions
1.display
2.ON/OFF Button
3.ZERO Button
4.Measuring Surface
Product Size(Unite:mm)
The carton packaging
NOTE:When measuring the vertical axis must be greater than 30 °, otherwise LCD will display "error".
|
CALIBRATION
The digital level has been pre-calibrated at the factory, The product should only be recalibrated if it has been dropped(Any reading on screen in ABS mode shows the angle to water level).
|
| (1) Place the digital level on a flat and smooth surface, press button "ON/OFF" and button "ZERO "at the same time, the calibration mode is activated and "-1-" will be displayed. | (2) Press button "ON/OFF" again, will flash briefly. Do not move until "-2-"" display. |
| (3) Rotate it 180°in the same location and press button "ON/OFF" ,"-2-" will flash briefly. Do not move until the unit has completed the calibration . | (4) Calibration is done. The angle be displayed on the unit is the angle between the calibrated plane and the horizontal plane. |
